Level Indicator Suppliers in India – Evolution Enterprises

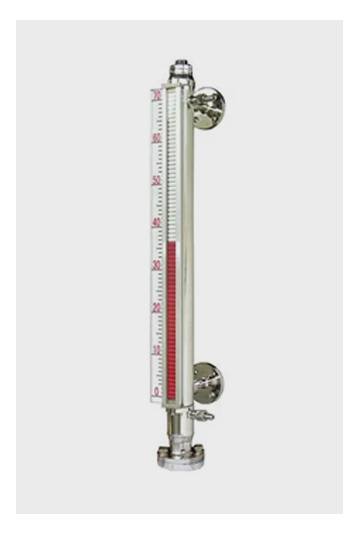

Evolution Enterprises, the one of the former level indicator suppliers in India, are offering the new technological level gauge indicator which is used to visually display the current level of a liquid or solid material within a tank, vessel or silo.
This can monitors and manage the fill level by providing a clear indication of its height. The new type of magnetic float sensors and gauges in these level indicators helps for increasing performance and able to use them into multiple types of applications. Below, we have mentioned some types, its benefits and also applications!
Types of our Level Gauge Indicator
Being the best level indicator suppliers in India, we are providing various types of level gauge indicators which are filled with multiple types of features. Here we have listed down some types such as:
- Float-Type Level Indicators: Float-type level indicators use a float that sits on the surface of a liquid. When the liquid level goes up or down, the float moves with it. Our various types of float sensors have wireless features, allowing people to check liquid levels from a distance. They are also made with durable materials like stainless steel that resist corrosion, which helps them last longer. These sensors can easily connect to factory control systems, making it easier to manage processes in smart and automated environments.
- Radar Level Indicators: Radar level indicators measure the level of a material by sending out high-frequency signals. These signals bounce off the surface of the material and return to the sensor. By measuring the time it takes for the signals to come back, the sensor accurately determines the material's level. Our multiple types of modern radar sensors can easily connect to monitoring and control systems, providing real-time information. New multi-frequency radar sensors can work with different materials, regardless of their density or reflectiveness.
- Ultrasonic Level Indicators: Our new and modern type of level indicators measure the level of a material by sending sound waves from the sensor toward the surface of the material. The sensor then calculates the level by figuring out how long it takes for the sound waves to bounce back. These sensors can connect to monitoring systems, providing real-time updates and alerts. In warehouses, they help track materials across silos and storage areas, making inventory management faster and more efficient.
- Capacitance Level Indicators: Our capacitance sensors measure the level of a material by sensing changes in electrical properties when a material, either liquid or solid, is present. As the material level changes, it affects the sensor’s electrical detection. These sensors are made with strong materials like stainless steel and plastic, which can handle chemicals and abrasive substances. Our new type’s designs also include self-cleaning features that prevent buildup and keep measurements accurate. In chemical reactors, capacitance sensors continuously monitor the interactions between liquids and solids, ensuring precise control of the process.
Technical Specifications
We have mentioned below a technical sheet of our level indicator that will give you more detailed information such as:
| Specification | Float-Type Level Indicators | Radar Level Indicators | Ultrasonic Level Indicators | Capacitance Level Indicators |
|---|---|---|---|---|
| Operating Principle | Mechanical float displacement | Time-of-flight radar signal reflection | Time-of-flight ultrasonic signal reflection | Dielectric property-based capacitance measurement |
| Measurement Principle | Displacement of a float on liquid surface | Reflection of microwave or radar waves | Reflection of ultrasonic waves | Change in electrical capacitance due to material interaction |
| Accuracy | ±1-5% of full scale | ±0.5-2% of full scale | ±1-3% of full scale | ±1-3% of full scale |
| Measurement Range | Up to 10 meters (depending on design) | Up to 30 meters (high ranges) | Up to 10 meters (environmental factors dependent) | Up to 10 meters (environmental effects) |
| Temperature Range | -40°C to +150°C | -40°C to +200°C | -40°C to +85°C | -40°C to +150°C |
| Pressure Range | Up to 40 bar | Up to 60 bar | Up to 40 bar | Up to 40 bar |
| Power Supply | Passive or low-power | Requires 24V DC or AC input | Requires 24V DC | Requires 24V DC |
| Output Signal | Analog (4-20 mA) or relay-based | Analog (4-20 mA), Digital, Modbus | Analog (4-20 mA), Relay, Digital interfaces | Analog (4-20 mA), Digital |
| Installation | Mounted on the tank surface or inside | Top-mounted, flange-mounted | Mounted at the top of tanks and pipes | Mounted on tank surface, inside the tank |
| Materials Compatibility | Compatible with metals, plastics, and stainless steel | Resistant to high temperatures, corrosion-resistant materials | Not compatible with extreme temperature or hazardous chemicals | Compatible with a wide range of materials including plastics |
Features of our Level Indicators:
One of the former level indicator suppliers in India, our all types of level gauge indicators are updated with new technological features such as:
- Analog Display Our all types of level indicator has a visual representation of liquid or solid levels using a moving needle on a dial.
- Digital Display It offers a clear, accurate readout of levels using a numeric digital screen.
- Ultrasonic Measurement This can uses sound waves to measure the distance between the sensor and the material's surface.
- Radar-Based Measurement Our level gauge indicators are equipped with radar waves to accurately measure material levels, even in extreme environments.
- Capacitive Sensing It can easily detect changes in electrical capacitance to measure levels of solids or liquids.
- Magnetic Float Measurement This can utilizes a float and magnet system to provide reliable level detection.
Benefits of using our level indicators:
Being the best level indicators suppliers in India, these level gauge indicators gives various types of benefits for increasing performance in applied industries. Here we have listed down some benefits such as:
- User-Friendly Interfaces: Our all types of level indicators are connected with digital displays and intuitive controls for ease of operation and interpretation.
- Energy Efficiency: This can reduces energy consumption by optimizing processes and preventing unnecessary operation.
- Data Logging and Reporting: In our modern types of level indicators, we have added data storage and reporting for performance analysis and compliance documentation.
- Seamless Automation Integration: This can easily works with automated control systems, ensuring smooth integration and process automation.
- Customizable Designs: They are also available in various shapes and sizes to suit specific system requirements and environments.
Applications of our level indicators
These all types of level indicators come with best quality of features and applied in various types of industrial sectors such as:
- Monitoring water levels in overhead storage tanks
- Fuel level detection in automotive and transportation
- Controlling boiler water levels in industrial plants
- Measuring chemical storage tank liquid levels accurately
- Detecting silo material levels in manufacturing industries
- Monitoring refrigeration system liquid levels effectively
- Ensuring hydraulic system fluid levels are maintained
- Measuring cryogenic liquid levels in storage tanks
- Tracking food processing tank liquid storage levels
- Pharmaceutical liquid storage monitoring with high accuracy
As a former level indicators suppliers in India, we as Evolution Enterprises are providing the best quality of level gauge indicators which is more useful component in the industrial sector due to its modern methodologies and working mechanism. We have also used new quality of modern sensors in these level indicators for performing well and increase productivity. For more information, contact us today!
